Fiberglass stringer

Fishbox w/overboard drain

Center console changing room

Porta potti

Built-in bait/live well

Beam

8' 6"

Fuel Capacity

158 gal

Max Load

3500 lbs

Specifications


Persons Capacity 10 10
L.O.A 24' 4" 7.4 m
Beam 8' 6" 2.6 m
Fuel Capacity 158 gal 598 L
Draft Up 16" 41 cm
Draft Down 34" 86 cm
Maximum Capacity 3500 lbs 3500 lbs
Approx. Boat Weight 3900 lbs 1769 kg
MaxHP 400 HP 298 kW
Deadrise 20° 20°
Bridge Clearance 8' 6" 2.6 m
Total height on Trailer w/Top 11' 4" 3.5 m
Total height on Trailer 9' 6" 2.9 m
Water Capacity 12 gal 45 L
Print Specifications

Features

Hull and Deck

  • Anchor locker/storage
  • Bow and Stern Eyes, stainless steel
  • Bow rails, stainless steel
  • Cleats, pull-up, stainless steel
  • Fiberglass stringer
  • Foam Flotation
  • Gel scheme, all white
  • Grab rails, powder coated
  • Horn, stainless steel
  • Ladder, boarding
  • Meets applicable USCG & Canadian Regs; NMMA Certified using ABYC Stds.
  • Navigation Lights
  • Rod holders, aft transom mounted
  • Rod holders, gunnel mount
  • Rub Rail, w/stainless steel insert
  • Thru hull fittings, stainless steel

Cockpit

  • 5 gallon bucket in holder
  • Assist handles, stainless steel
  • Bait well/live well, 34 gallon w/ bluecoat, light & timer *(40 gal on 242)
  • Bait well/live well, 17 gallon w/ bluecoat, light & timer
  • Beverage holder(s)
  • Bolsters, cockpit
  • Cooler, bow
  • Cooler, carry-on, 72 qt
  • Cooler, under leaning post (removable)
  • Courtesy Lights
  • Cutting board
  • Deck lids w/stainless steel, latches gas assist
  • Diamond pattern anti-skid
  • Leaning post
  • Rod storage, gunnel
  • Seating, forward console
  • Seating, rear folding bench
  • Self bailing cockpit
  • Storage/Fishbox w/overboard drain
  • Tackles storage w/boxes

Helm

  • 12 volt receptacle
  • Compass
  • Steering wheel, stainless w/knob

Engine/Systems

  • Battery on/off switch
  • Bilge pump, automatic
  • High speed live well pick-up
  • Raw water wash down
  • Trim tabs *(w/LED indicators on 221 & 241)

Console

  • Battery storage
  • Changing room
  • Head, porta potti (NA Canada)
  • Port light
  • Rod holders
  • Tackle storages curtains
  • Windscreen, console

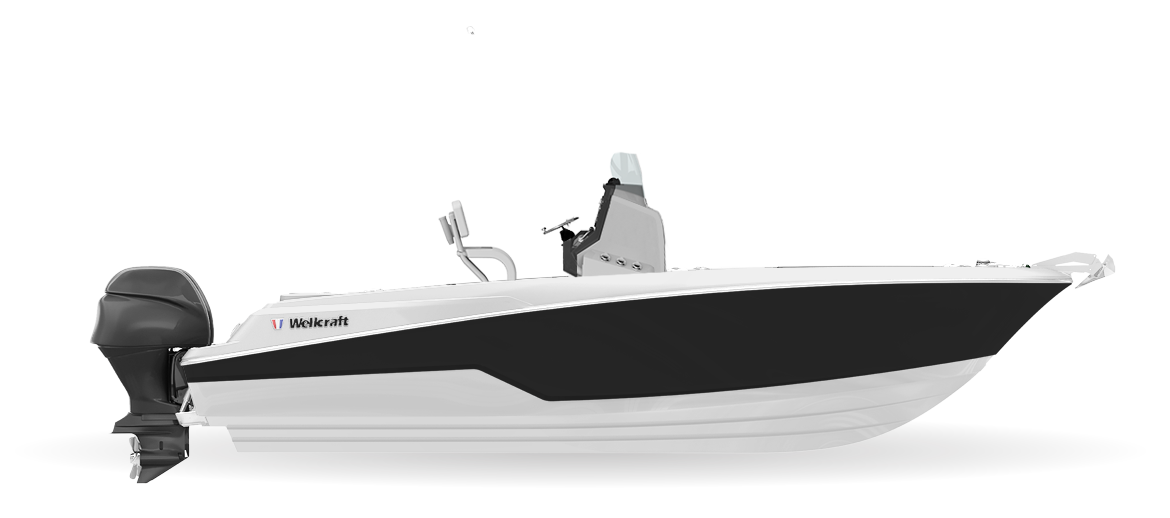

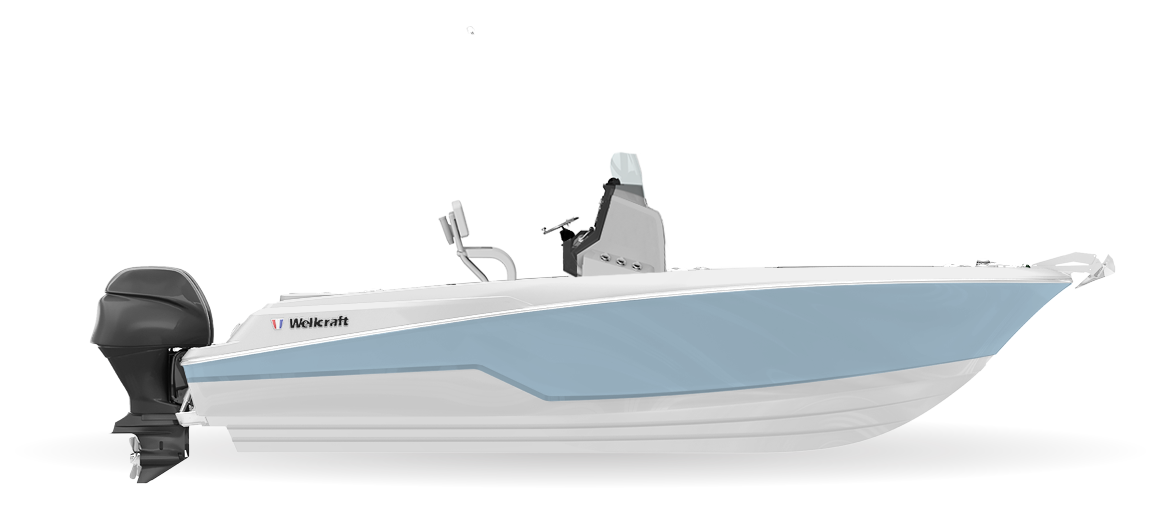

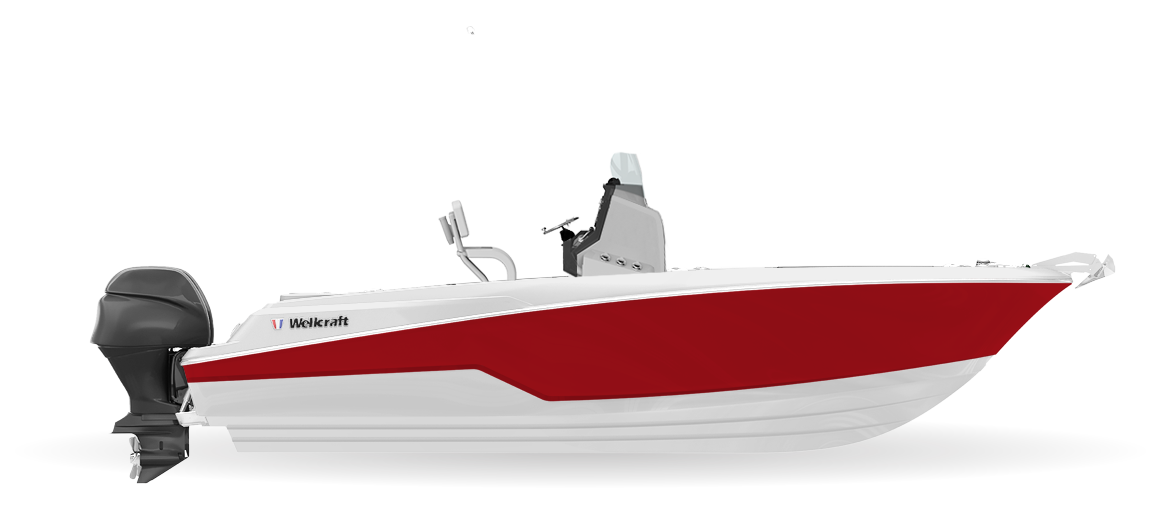

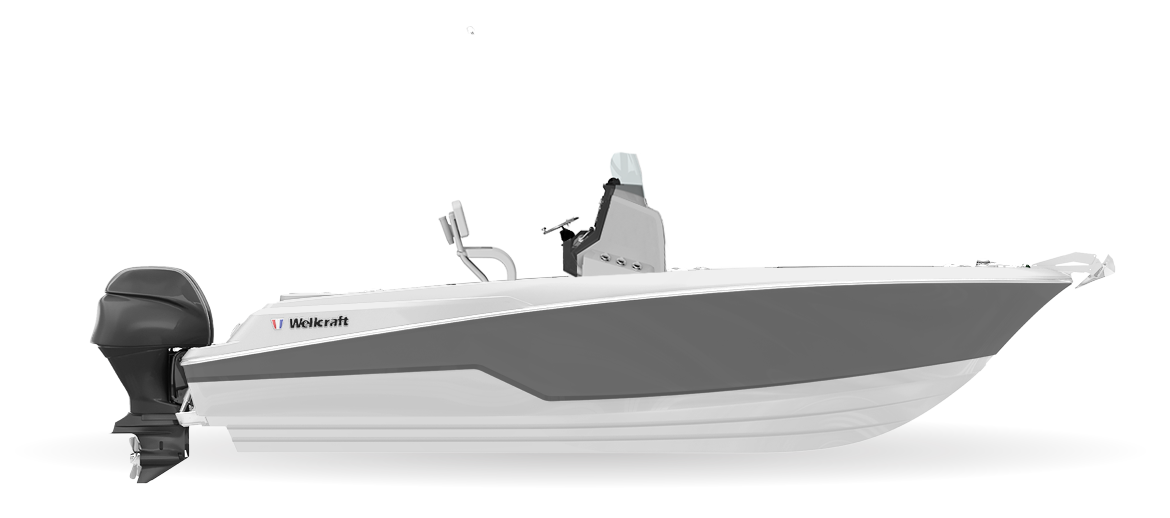

Color Options


Start building your 242 Fisherman by selecting one of the color options below.


Option Packages

Seaside Trim Package


  • Leaning post, upgrade w/backrest, rod holders
  • Mat package, helm floor and rod storage
  • Beige Cockpit Interior
  • Flooring, Sea Grass

Family Package


  • Bow Table
  • Bow Seating Package
  • Bow Fill-in cushion
  • Bow Forward Facing Backrests

Scarab Offshore Package


Bow Seating Package


  • Port, Starboard & Forward backrest cushions
  • Port & Starboard seat cushions

Performance


Wellcraft offers you a selection of the best engines from leading manufacturers. Reliable performance that gets you where you want to go.


  • Mercury® 250 XXL Verado
  • Mercury® 300 XXL Verado
  • Mercury® 300 XXL Verado Warm White
  • Twin Mercury® 150 XL 4S
  • Mercury® 300 XL Verado Warm White

  • Yamaha® F250 UCA
  • Yamaha® F300 UCA
  • Twin Yamaha® F150 XB
  • Twin Yamaha® F200 XCA

  • Evinrude® E-TEC 250 DPZ G2
  • Twin Evinrude® E-TEC 150 DPX
  • Twin Evinrude® E-TEC 200 DPX
  • Evinrude® E-TEC 300 ZU G2
