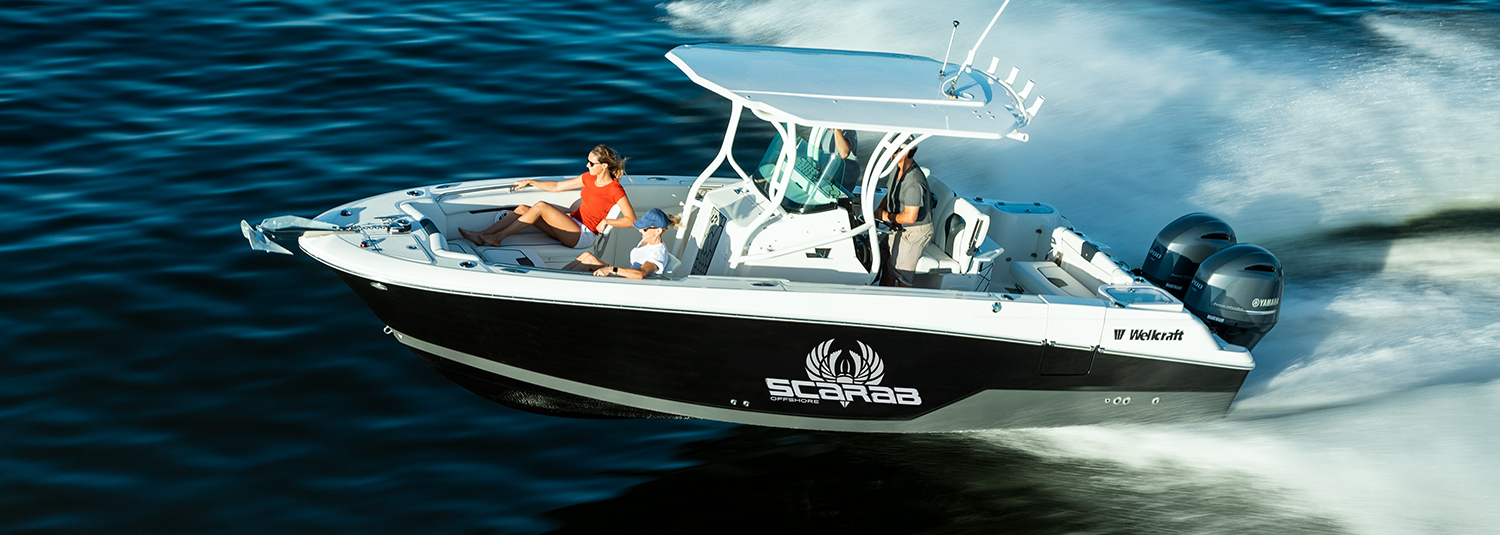

Despite the core of fishing functionality, family comfort is not forgotten aboard the 262F. The bow details an abundance of features boating families will admire, while the helm and stern hold all the tools and features seasoned fishermen desire.

Color Options

Specifications

L.O.A 26' 4" 8 m
Beam 9' 2.7 m
Fuel Capacity 158 gal 598 L
Approx. Draft Up 20" 51 cm
Approx. Draft Down 37" 94 cm
Approx. Boat & Engine Weight 6280-7020 lbs 2849-3184 kg
Max HP 500 HP 373 kW
Deadrise 21° 21°
Bridge Clearance w/T-Top 8' 8" 2.6 m
Total height on Trailer 9' 10" 3 m
Total height on Trailer w/Top 11' 9" 3.6 m

Standard Features

Hull and Deck

  • Anchor locker w/ lid, latch & tie off
  • Bow & stern eyes, stainless steel
  • Bow anchor roller
  • Bow rails, recessed
  • Cleats, pull-up, stainless steel
  • Fiberglass stringer system
  • Exterior color scheme, all white
  • Horn
  • Meets applicable uscg & canadian regs; nmma certified using abyc stds.
  • Navigation lights, LED
  • Rod holders, deck-mount
  • Rub rail w/ stainless steel insert
  • Thru-hull fittings, stainless steel
  • Powdercoat, white
  • Ladder, stern, retractable
  • Transom lighting, LED
  • Winning edge owner protection plan
  • Under hardtop color scheme, all white
  • Powdercoat, choice of color
  • Rod holders, stern, transom mount
  • Underwater fittings, bronze

Cockpit

  • Bucket in holder, bow, 5 gal
  • Assist handles, stainless steel
  • Coaming bolsters w/ rich hand-fitted vinyl & comfort padding
  • Cooler, bow
  • Cooler, 72 qt., under leaning post (carry-on)
  • Courtesy light(s)
  • Deck lids, easy-clean underside w/ flush-mount hinges
  • Helm seating. Leaning post w/backrest & rod holders
  • Rod storage, gunnel
  • Seating, forward console
  • Seating, aft folding bench(es)
  • Self bailing cockpit
  • Tackle storage w/ boxes
  • Storage, bow
  • Fiberglass liner, skid-resistant, self-draining
  • Baitwell, stern w/ bluecoat, light & timer, insulated, 17 gal
  • Baitwell, stern w/ bluecoat, light & timer, insulated, 23 gal
  • Beverage holder(s), stainless steel
  • Interior color scheme, choice of color
  • Non-skid, mechanical pattern
  • Storage/fishbox(es), floor w/ macerator and overboard drain
  • Upholstery, premium vinyl w/ drain/dry-fast marine-grade foam
  • Water intrusion management systems
  • Transom door

Helm

  • Compass
  • Steering wheel, stainless steel
  • Cell phone holder
  • Custom gauges. system matched

Entertainment

  • Stereo system w/ deluxe T-Top, 4 speakers (req. deluxe T-top)
  • USB ports

Engine / Systems / Drive

  • Bilge pump, automatic
  • Raw water wash down
  • Trim tabs w/ LED indicators
  • Battery tray(s)
  • Hydraulic tilt steering (std on 150 hp and up)
  • Battery tray(s), dual w/ switch
  • Outlet, 12V
  • Outlet, USB charge port(s)
  • Hydraulic steering (std on 150 hp and up)

T-Tops

  • T-top w/rod holders, fiberglass

Power Options

  • Yamaha® F300 UCB

Under Hardtop Color

  • Wellcraft White

Console / Cabin

  • Changing room
  • Flooring, fiberglass liner
  • Head, porta pottie (na canada)
  • Lighting
  • Rod holders
  • Storage, curtains
  • Windscreen, console

Hull Color

  • Wellcraft White Top

Options

Hull and Deck

  • Anchor w/ rope & chain
  • Underwater lights, LED
  • Windlass w/rope, chain & anchor
  • Dive door
  • Powdercoat, black
  • Under hardtop color scheme, choice of color (req. deluxe T-top)

Cockpit

  • Transom cutting board w/ tool holders
  • Marine Mat, helm footrest & rod storage, diamond pattern
  • Table, bow
  • Storage trays, aft, port, starboard, tilt out
  • Storage trays w/ dive door, aft, tilt out
  • Helm seating upgrade, dual captain chair w/ armrests, baitwell & cutting board
  • Marine Mat, helm footrest, rod storage, leaning post & baitwell, diamond pattern (req helm seating upgrade)
  • Flooring, reed mat, dune (tan), removable
  • Seating, backrest, forward facing, removable
  • Cockpit sink w/transom shower & fresh water system
  • Flooring, reed mat, ash (grey), removable
  • Bow fill-in cushion (req. bow seating pkg.)
  • Storage trays, forward, port, starboard, tilt out

Engine / Systems / Drive

  • Battery charger(s)
  • Down rigger, pre-wire
  • Power assisted steering, Yamaha engines
  • Mercury, Vesselview Mobile
  • Mercury power steering (req. 200 hp Mercury engines)
  • Down rigger pre-wire, dual 30A

Power Options

  • Twin Mercury® 150 XL 4S
  • Twin Yamaha® F150 XB
  • Twin Yamaha® F200 XCA
  • Twin Mercury® 250 XL Verado
  • Twin Yamaha® F250 XCB
  • Twin Yamaha® F200 XB
  • Twin Mercury® 250 XL Verado White
  • Yamaha® F300 UCB2 White
  • Mercury® 300 XXL Verado
  • Mercury® 300 XXL Verado White
  • Mercury® 350 XXL Verado
  • Twin Mercury® 200 XL 4S DTS
  • Twin Mercury® 200 XL 4S DTS White
  • Mercury® 350 XXL Verado White

Canvas

  • Console & helm seat cover
  • Sail shade w/ carbon fiber poles
  • Spray shields, Eisenglass (t-top only)

Trailer

  • EZ-Loader® aluminum, triple axle w/brakes & spare

Console / Cabin

  • Head, electric, porcelain toilet w/ holding tank
  • Head, overboard discharge

Helm

  • VHF radio, Garmin® 110
  • GPS plotter w/depth sounder, Garmin®8610 xsv

T-Tops

  • T-top, deluxe, LED lights, electronics box, spreader lights, rod holders, phone holder & 2 add'l speakers

Packages

Bow seating package

  • Backrest cushions, bow
  • Seat cushions, bow

Premium sound package w/ deluxe T-top

  • Amplifier(s), JL Audio®
  • Stereo, Fusion®
  • Speakers, JL Audio® (4)
  • Subwoofer(s), JL Audio®
  • T-top, deluxe, LED lights, electronics box, spreader lights, rod holders, phone holder & 2 add'l speakers

Premium sound package

  • Amplifier(s), JL Audio®
  • Stereo, Fusion®
  • Speakers, JL Audio® (4)
  • Subwoofer(s), JL Audio®

Scarab Offshore Package 2022

  • Marine Mat, helm footrest & rod storage, diamond pattern
  • Scarab Offshore Graphic (silver)
This information is for reference only, and the actual design, specifications, and options may vary from the photos and other information shown. Contact your dealer for more information.
For a complete list of features, options and available power, see an authorized Wellcraft dealer for additional details. wellcraft.com
